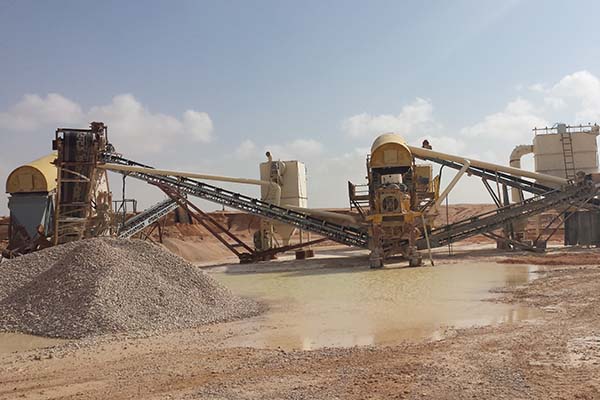

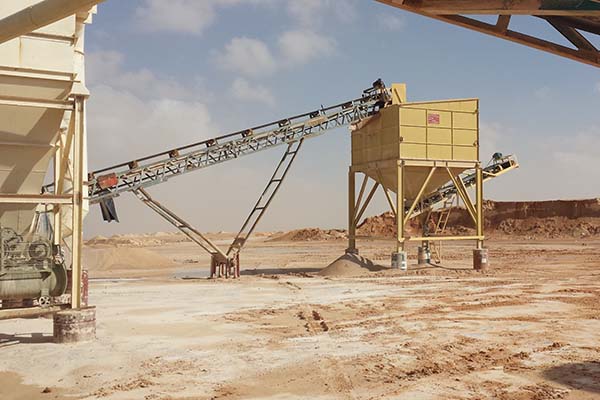

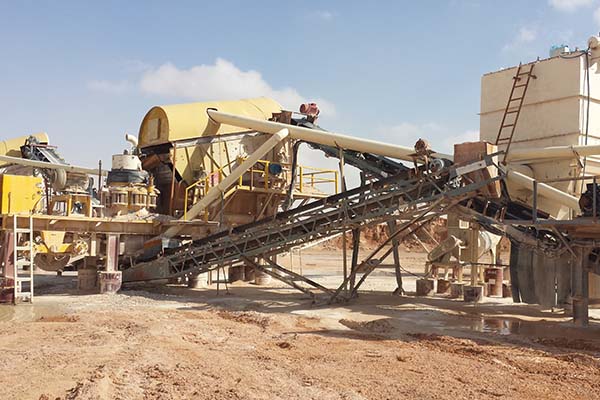

Limestone Crushing&Screening Plant in Saudi Arabia

• Type: Semi-Mobile(mounted on steel structure)
• Max Feeding Size: 500mm
• Final Output Size: 0-3mm, 0-3/16”, 3/16”-3/8”, 3/8”-3/4”
• Capacity: 100-150TPH

On May 05 of 2006, one customer from Al Owaidah for Contracting Company in Riyadh, KSA ordered a complete set of limestone crushing and screening plant, including:

• 1.Hopper: LC3000x3000

• 2.Grizzly Vibrating Feeder: GZD960x3800/1 set

• 3.Primary Jaw Crusher: PE600x900/1 set

• 4.Secondary Symons Cone Crusher: CSB160/1 set

• 5.Tertiary Impact Crusher: PF1010/1 set

• 6.Vibrating Screen: 2YZS1237/1 set

• 7.Vibrating Screen: 3YZS1860/2 sets

• 8.Belt Conveyor: 14sets

• 9.Dust Collector

• 10. Steel Structure

We loaded and shipped these goods in 1x20'OT+14x40'HQ from Qingdao to Dammam port.

Their project is located in Suman, which is to crush limestone from 500mm into 3mm, 3/16”, 3/8”, 3/4” at 100-150tons per hour for road and building construction.

They used cone crusher as secondary one, impact crusher as tertiary one in the plant. Cone crusher is suitable to process both soft and hard stone. While there are more flaky pieces from it. So, we equip impact crusher behind it to shape the aggregates into cubic pieces.

A modern high-performance crusher that integrates high swing frequency, optimized cavity shape, and reasonable stroke is designed and developed based on the principle of laminated crushing and the concept of "more breaking and less grinding" according to the actual needs of users. Symons cone crusher is widely used in the metallurgical industry, building materials industry, road construction industry, chemical industry, and silicate industry, suitable for crushing various ores and rocks with medium and above hardness. By optimizing the cavity design and combining reasonable speed and stroke, it has better performance and higher production capacity. Adopting the principle of laminated crushing, the proportion of cubes in the product is significantly increased, needle shaped stones are reduced, and the particle size is more uniform.

When non crushing objects such as iron blocks enter the machine, the iron protection device will automatically release them and then reset them. The iron protection has a fixed return point for the discharge port, and the miscellaneous iron can quickly restore the original discharge port after passing through the crushing chamber; When the oil temperature is too high or the oil flow rate is too slow, the device will automatically shut down.

The impact crusher not only perform multi chamber crushing and improve equipment efficiency, but also specially treated parts such as plate hammers have good wear resistance and extremely low wear rate. Not only is the particle size fine, the particle type regular, there are few needle-shape materials, and the grading is very high.
