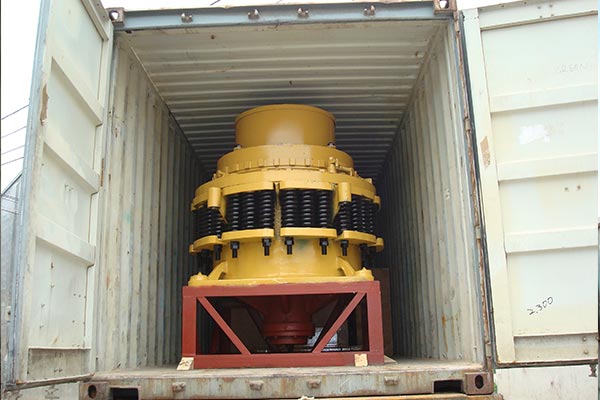

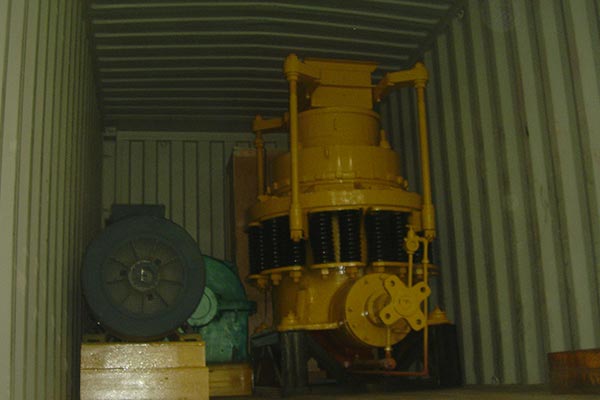

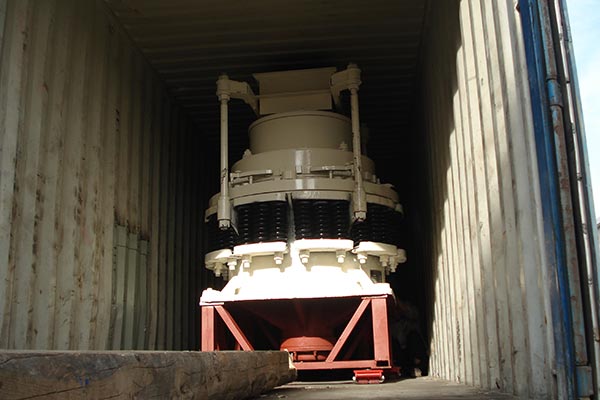

Symons Cone Crusher

OVERVIEW

Symons cone crusher is a modern, high-performance crusher developed by our company based on the introduction and absorption of foreign technology and designed to meet customer requirements. It is built on the principles of laminated crushing and the concept of maximizing crushing and minimizing grinding. This crusher combines a high swing frequency, optimized chamber design, and a rational stroke to deliver exceptional performance.

Symons cone crusher finds wide applications in various industries, including both metallic and non-metallic ores, cement plants, construction, sand and gravel, metallurgy, and more. It is suitable for crushing materials such as iron ore, non-ferrous metal ores, granite, limestone, quartzite, sandstone, pebbles, river stone, basalt, ...

ADVANTAGES

Through optimized chamber design and a combination of reasonable speed and stroke, symons cone crusher can do the most work for the same movable cone diameter. Consequently, it offers higher performance and production capacity compared to other cone crushers of the same type.

Use laminated crushing principle, to make more cubic shape materials and less needle-like materials.

By using the principle of laminated crushing, it significantly increases the proportion of cubic-shaped products, reduces needle-like stones, and results in a more uniform particle size distribution.

When non-crushable materials like iron blocks enter the machine, the iron-through protection device will automatically release them and then reset. The iron-through protection has a fixed discharge opening return point, allowing for a quick return to the original discharge opening after the foreign material has passed through the crushing chamber.

If the crusher stops under load condition, the hydraulic cavity clearing system can quickly clean the crushing chamber, significantly reducing downtime.

It employs a large-diameter main shaft, heavy-duty main frame, and an independent automatic control system for a thin oil lubrication system, ensuring robustness and reliable operation of the crusher.

All parts can be disassembled from the top or the side, making it convenient to remove both the fixed and movable cone assemblies. Bronze sliding bearings can maintain excellent load-bearing performance even in high-impact and vibration crushing environments, offering a more cost-effective and easier maintenance solution compared to rolling bearings.

With its high production capacity, high reliability, and easy maintenance, it significantly reduces production costs.

Symons cone crusher is designed to maximize performance for various crushing processes, from coarse to fine crushing and from stationary to mobile crushing stations. It offers different cavity types for selection based on the crushing process flow.

WORKING PRINCIPLE

Symons cone crusher consists primarily of a frame, fixed cone assembly, movable cone assembly, spring mechanism, bowl-shaped shaft frame, and a transmission system. Its auxiliary components include the electrical system, thin oil lubrication system, and hydraulic clearing chamber system.

During operation, an electric motor drives the eccentric sleeve to rotate through a V-belt, large pulley, transmission shaft, small bevel gear, and large bevel gear. This rotation causes the axis of the crushing cone to swing, moving the crushing wall surface closer to and away from the concave surface. This continuous movement allows materials within the annular crushing chamber formed by the fixed cone and the movable cone to be subjected to repeated impacts, compression, and bending, ultimately breaking them. After several cycles of compression, impact, and bending, the materials are crushed to the required particle size and discharged through the lower part of the crusher.
